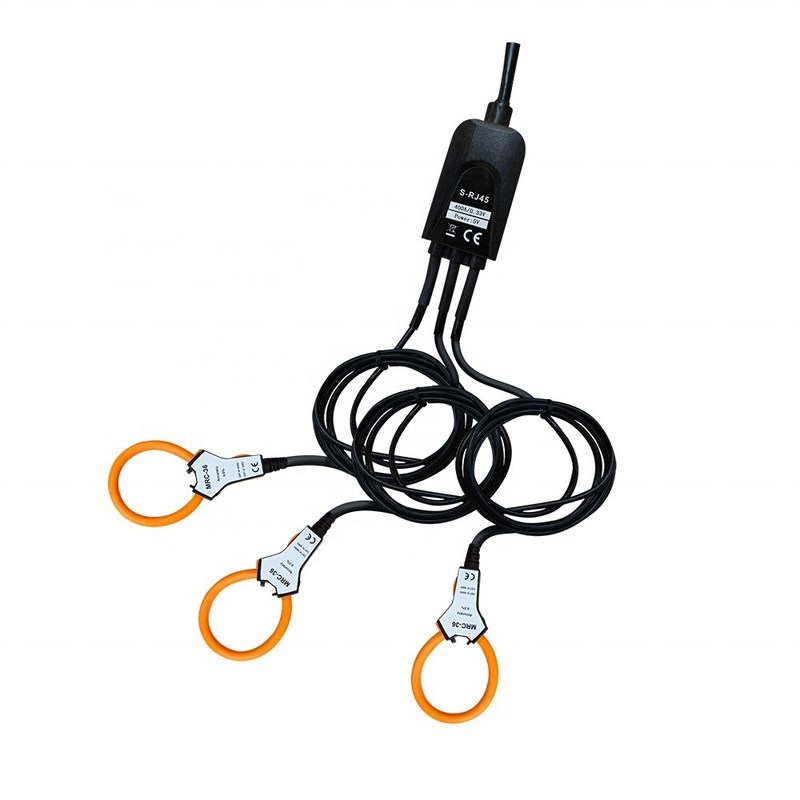

Flexible Rogowski Coil Current Probe for Accurate AC Current Measurements 1A-100kA

Name: Flexible Rogowski Coil Current Probe for Accurate AC Current Measurements 1A-100kA
Brand: Fineco
SKU: MRC-16, MRC-24, MRC-36, MRC-50
Price: 30.00 USD
Availability: InStock
Rating: 4.5 (164 reviews)

Product Details

Place of Origin: Shanghai, China

Brand Name: Fineco

Model Number: MRC-16, MRC-24, MRC-36, MRC-50

Payment & Shipping Terms

Minimum Order Quantity: 100 units

Price: $30.00 - $35.00/units

Get Best Price

Product Details

Product Description

Highlight:

Use:	Current	Phase:	Three
Coil Structure:	TOROIDAL, Flexible Rogowski Coil	Coil Number:	AUTOTRANSFORMER
Input Voltage:	1000V CATIII, 600V CATIV	Output Voltage:	50mV/kA@50Hz, 60mV/kA@60Hz
Type:	3 Phase	Maximum Current Measurable:	100kA
Coil Section:	6mm	Read Accuracy:	Calibrated <0.5% (central Position, 25℃)
Lead Length:	2 Meter

Use:	Current
Phase:	Three
Coil Structure:	TOROIDAL, Flexible Rogowski Coil
Coil Number:	AUTOTRANSFORMER
Input Voltage:	1000V CATIII, 600V CATIV
Output Voltage:	50mV/kA@50Hz, 60mV/kA@60Hz
Type:	3 Phase
Maximum Current Measurable:	100kA
Coil Section:	6mm
Read Accuracy:	Calibrated <0.5% (central Position, 25℃)
Lead Length:	2 Meter

Flexible Rogowski Coil Current Probe for Accurate AC Current Measurements 1A-100kA

MRC 1A to 100kA AC Current Probe

flexible rogowski coil current transformer

Rogowski coil integrator

The integration of Rogowski coils in current measuring systems has revolutionized the way electric currents are detected and measured. By incorporating Rogowski coil integrators and Rogowski coil current transformers, these systems have become even more accurate and reliable. Rogowski coil integrators play a crucial role in these systems by integrating the voltage output from the coil, which is directly proportional to the rate of change of current. This integration process ensures that the output signal is directly proportional to the current flowing through the conductor, providing precise measurements in real-time. Furthermore, Rogowski coil current transformers enhance the functionality of these systems by accurately transforming high currents into proportional lower currents that can be safely measured. This transformation process allows for the measurement of large currents without the need for direct contact with the conductor, making the system safer and more versatile.

Window size	Lead length	Ratio
Φ 16	0.5m	22.5mV/kA
Φ 24	1m	50mV/kA
Φ 36	1.5m	56mV/kA
Φ 50	5m	...
...	...	...
