EM115 CT 1 Module Self Power LCD Display Digital Electric Meter Reverse
EM115 CT 1 Module Self Power LCD Display Digital Electric Meter Reverse

EM115 CT 1 Module Self Power LCD Display Digital Electric Meter Reverse

Product Details

Place of Origin: China

Brand Name: Fineco

Model Number: EM115 CT

Payment & Shipping Terms

Minimum Order Quantity: 200 units

Price: $17.00/units 200-999 units

Packaging Details: Standard export packing for Self power supply LCD display digital electric meter reverse

Supply Ability: 5000 Unit/Units per Month

Get Best Price

Product Details

Product Description
Highlight:
Display Type:
Digital Only
Phase:
Single Phase
Measuring Energy Range:
99999.9
Accuracy Class:
Class1
Output Voltage:
120/230V
Operating Temperature:
-25 To 75
Dimensions:
18*104.5*60
Product Name:
Self Power Supply LCD Display Digital Electric Meter Reverse
Module:
1 Module
Communication:
Modbus RTU/M-bus
Certificate:
CE
OEM:
Yes
Color:
White
Port:
Shanghai
Display Type:
Digital Only
Phase:
Single Phase
Measuring Energy Range:
99999.9
Accuracy Class:
Class1
Output Voltage:
120/230V
Operating Temperature:
-25 To 75
Dimensions:
18*104.5*60
Product Name:
Self Power Supply LCD Display Digital Electric Meter Reverse
Module:
1 Module
Communication:
Modbus RTU/M-bus
Certificate:
CE
OEM:
Yes
Color:
White
Port:
Shanghai
EM115 CT 1 Module Self Power LCD Display Digital Electric Meter Reverse
Product Description

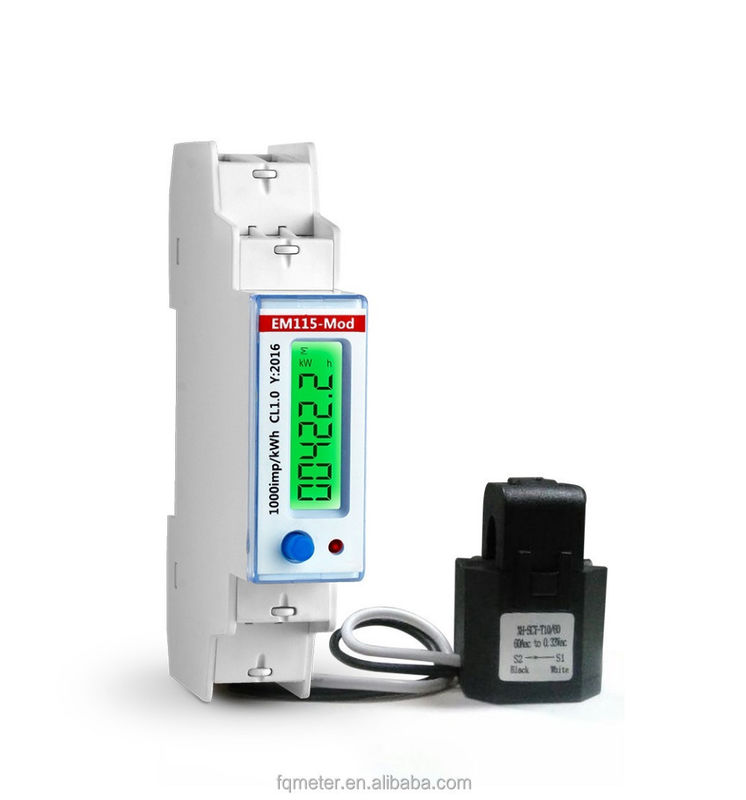

Self power supply LCD display digital electric meter reverse

EM115 CT 1 Module Self Power LCD Display Digital Electric Meter Reverse 0

 Main Functions and features:

  •    Single phase metering
  •    CT 60A  330mv AC input
  •    Standard DIN rail Format (DIN43880)
  •    CI.1(kWh) according to EN62053-21 .
  •    CI.2(kvarh) according to EN62053-23
  •    Energy consumption LED
  •    LCD display , total kWh energy and kvarh readout: 5+1 DGT
  •    Green backlight display
  •    Instantaneous variables:  V, A, W, var , PF, Hz
  •    2 pulse output
  •    Smart communication port,
  •    RS485&M-bus can selected
  •    Self power supply
  •    Memory back-up (EEprom)
  •   18mm wideth 1 modual

Meter specification:

Voltage(v)

120/ 230

Operational voltage

(70%-130%)Un

CT

60A/0.33V

Power consumption of current circuits(VA)

< 0.01

Power consumption of voltage circuits(W)

< 1.3W

General data



Frequency (Hz)

50/60

Accuracy

Current

±0.5%

Voltage

±0.5%

Frequency

±0.1Hz

Active power

±1%

Reactive power

±2%

LED

Red led,1000imp/kWh

Output specification

Pulse duration

≥100ms < 120msec (ON),

≥120ms (OFF)

Insulation

4000 VRMS output to

measuring inputs

Memory back-up

EEprom

Connections





Cable cross-section area

Screw-type

 Min 2.5mm2 Max 10mm2

Other terminals: 1.5mm2

DIN House(W×H×D)

17.5×90×67.5
