Product Details
Place of Origin: Shanghai, China
Brand Name: Fineco
Model Number: EM4372
Payment & Shipping Terms
Minimum Order Quantity: 5 units
Price: $32.00/units 34 units
Payment Terms: L/C, T/T

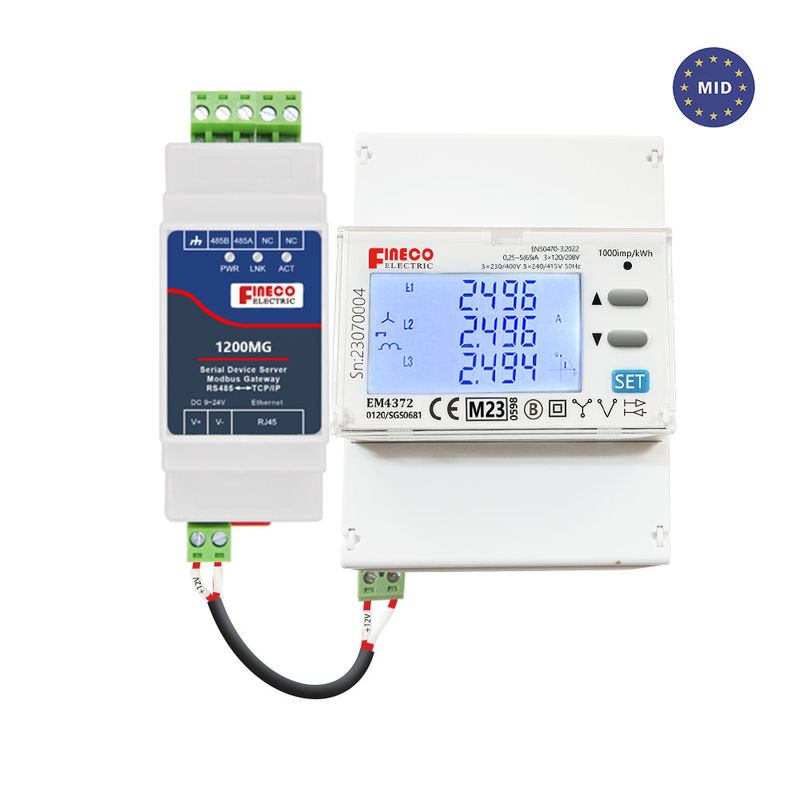

As a new power quality analyzer developed by Fineco, the EM4372 can be used not only as a power meter, but also as a power quality analyzer: providing measurements of all parameters of the power and analyzing the Angle and balance of the three-phase voltage. Provides a full set of THD features for user analysis. At the same time, it can access the three-phase four-wire and three-phase three-wire power system. Provides import and export energy metering and analysis. RS485 modbus communication, firmware can be upgraded over modbus.
Series Models:
| Model | Nominal voltages | Function |
| EM4372 | 3×120/208~3×240/415V |
● Compatible with LV,MV,HV applications
● System wiring method Y/Δ, Voltage L-L from 208V up to 415V
● More than 300 electrical parameters measured and displayed
● Harmonic analysis of voltage and current up to 41st order
● Phase sequence indication
● Voltage Asymmetry (Phase-Phase, Phase-Neural), Current Asymmetry
● Max & Min & Average &demand measure
● Load survey/profile, interval programmable
● Built-in RS485 communication port,modbus protocol
● Available the remote firmware upgrade of the instrument
|
