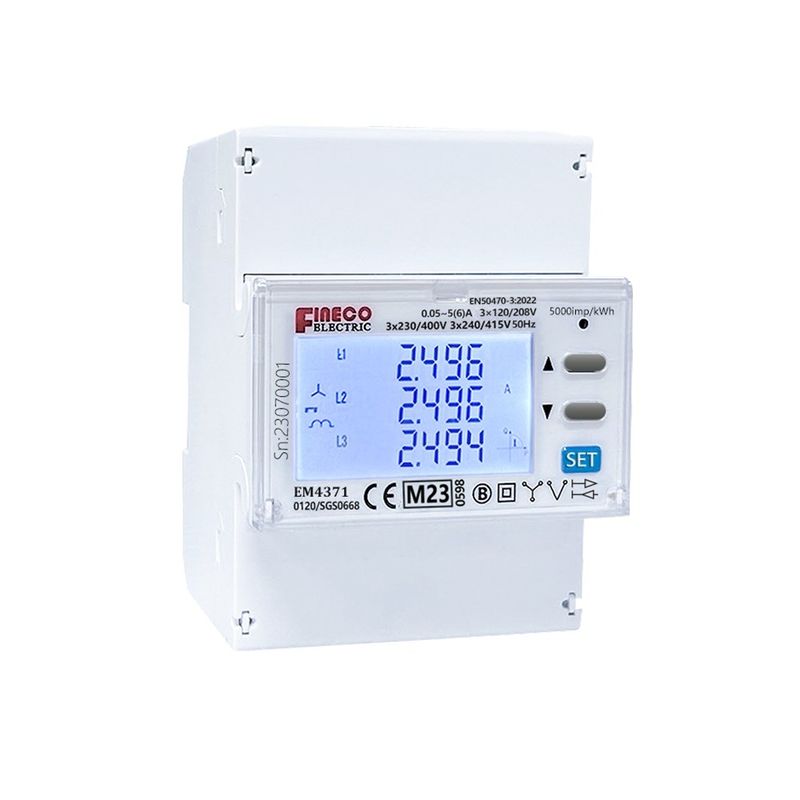

EM4370 Series 3 Phase Bypass Electric Meter with Temperature -25 to +75

Name: EM4370 Series 3 Phase Bypass Electric Meter with Temperature -25 to +75
Brand: Fineco
SKU: EM4370
Price: 29.00 USD
Availability: InStock
Rating: 4.9 (119 reviews)

Product Details

Place of Origin: Shanghai, China

Brand Name: Fineco

Model Number: EM4370

Payment & Shipping Terms

Minimum Order Quantity: 100 units

Price: $29.00/units 100-999 units

Get Best Price

Product Details

Product Description

Highlight:

Display Type:	Digital Only	Phase:	Three Phase
Measuring Energy Range:	999999.99	Accuracy Class:	Class.1
Output Voltage:	3*230/400V	Operating Temperature:	-25 To +75
Dimensions:	90104.560	Certificate:	CE
OEM:	Yes	Communication Port:	RS485
Output:	S0	Communication Protocol:	Modbus RTU
Modular Number:	Modular Number	Voltage:	Customized Voltage For 3 Phase Smart Kwh Meter Price
Type:	DC Connected 3 Phase Smart Kwh Meter Price

Display Type:	Digital Only
Phase:	Three Phase
Measuring Energy Range:	999999.99
Accuracy Class:	Class.1
Output Voltage:	3*230/400V
Operating Temperature:	-25 To +75
Dimensions:	90104.560
Certificate:	CE
OEM:	Yes
Communication Port:	RS485
Output:	S0
Communication Protocol:	Modbus RTU
Modular Number:	Modular Number
Voltage:	Customized Voltage For 3 Phase Smart Kwh Meter Price
Type:	DC Connected 3 Phase Smart Kwh Meter Price

EM4370 Series 3 Phase Bypass Electric Meter with Temperature -25 to +75

MID approved EM4370 series 3 phase bypass electric meter

The EM4370 is widely used in application scenarios such as building renovation projects, solar inverters, and electric vehicle charging piles to facilitate on-site construction. The meter is a standard four-module 72mm width, which can be used for single-phase two-wire/three-phase three-wire/three-phase four-wire power grids.

The instrument accurately measures the forward and reverse electric energy and grid voltage, current, active power, reactive power, apparent power, power factor and other grid parameters and voltage phase sequence indications. The meter can also be used in a dual-power system to measure grid and generator charges; The instrument's RS485 communication port allows remote system connection to provide all parameters in real time.

EM4370 Certified according to MID Directive, Module B and Module D of Annex II, for legal metrology relevant to active electrical energy meters.

Series Models:

Type	Nominal voltages	Function
EM4370	3×120/208V~3×240/415V	2×S0+1×DO+1×RS485+Tariff input
EM4371	3×120/208V~3×240/415V	2×S0+1×RS485+Tariff input
