Product Details
Place of Origin: Shanghai, China
Brand Name: Fineco
Model Number: EM4373
Payment & Shipping Terms
Minimum Order Quantity: 5 units
Price: $34.00/units 5-199 units
Display Type: |
Digital Only |
Phase: |
Three Phase |
Measuring Energy Range: |
0---999999.99--9999999.9--99999999 |
Accuracy Class: |
CL1.0 |
Output Voltage: |
3*230/400V |
Operating Temperature: |
-25 To +75℃ |
Dimensions: |
72*100*68 |
Product Name: |

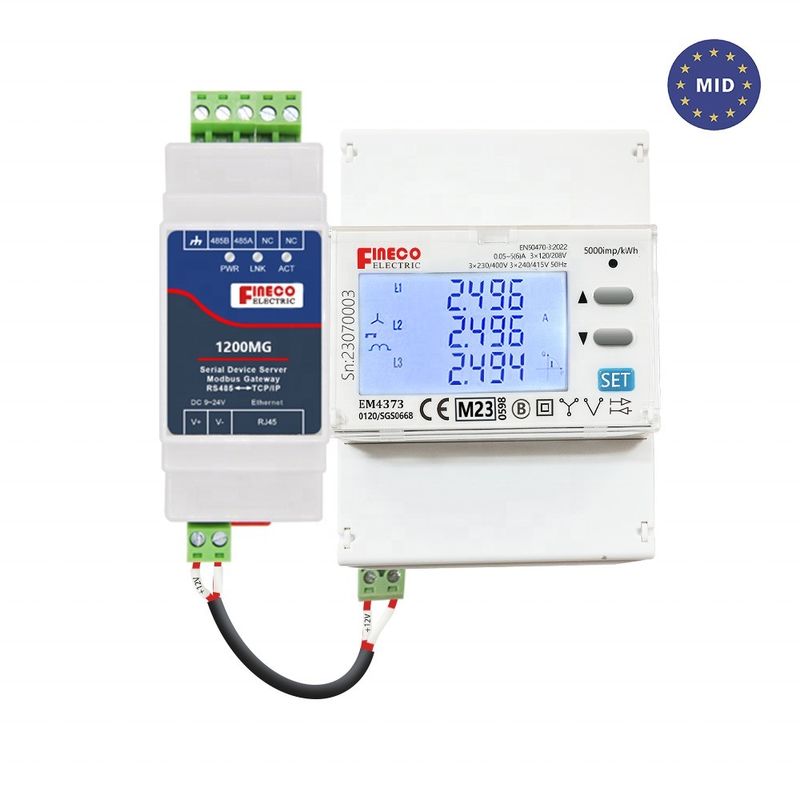

Three Phase Electronic RS485 Energy Meter |
OEM: |
Yes |
Communication: |
Modbus Rtu |
Type: |
3 Phase Power Analyzer |
Application: |
EV Charging Energy Meter |
Connect Wire: |
CT Type For Bi-directional Smart Electric Energy Meter |
Display Type: |
Digital Only |
Phase: |
Three Phase |
Measuring Energy Range: |
0---999999.99--9999999.9--99999999 |
Accuracy Class: |
CL1.0 |
Output Voltage: |
3*230/400V |
Operating Temperature: |
-25 To +75℃ |
Dimensions: |
72*100*68 |
Product Name: |
Three Phase Electronic RS485 Energy Meter |
OEM: |
Yes |
Communication: |
Modbus Rtu |
Type: |
3 Phase Power Analyzer |
Application: |
EV Charging Energy Meter |
Connect Wire: |
CT Type For Bi-directional Smart Electric Energy Meter |
|
Type
|
Nominal voltages
|
Function
|
|
EM4373
|
3×120/208V~3×240/415V
|
● Compatible with LV,MV,HV applications
● System wiring method Y/Δ, Voltage L-L from 208V up to 415V
● More than 300 electrical parameters measured and displayed
● Harmonic analysis of voltage and current up to 41st order
● Phase sequence indication
● Voltage Asymmetry (Phase-Phase, Phase-Neural), Current Asymmetry
● Max & Min & Average &demand measure
● Load survey/profile, interval programmable
● Built-in RS485 communication port,modbus protocol
● Available the remote firmware upgrade of the instrument
|
