2 Phase Bi-Directional Induction Watt Hour Meter with Modbus RTU/M-bus

Name: 2 Phase Bi-Directional Induction Watt Hour Meter with Modbus RTU/M-bus
Brand: shanghai fangqiu electric co.,ltd
SKU: EM115 CT
Price: 109.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: Fineco

Model Number: EM115 CT

Payment & Shipping Terms

Minimum Order Quantity: 200 units

Price: $19.00/units 200-999 units

Packaging Details: Standard export packing for 2 pulse output single phase bi-directional induction watt hour meter

Supply Ability: 5000 Unit/Units per Month

Get Best Price

Product Details

Product Description

Highlight:

Display Type:	Digital Only	Phase:	Single Phase
Measuring Energy Range:	99999.9	Accuracy Class:	Class1
Output Voltage:	120/230V	Operating Temperature:	-25 To 75
Dimensions:	18104.560	Product Name:	2 Pulse Output Single Phase Bi-directional Induction Watt Hour Meter
Module:	1 Module	Communication:	Modbus RTU/M-bus
Certificate:	CE	OEM:	Yes
Color:	White	Port:	Shanghai

Display Type:	Digital Only
Phase:	Single Phase
Measuring Energy Range:	99999.9
Accuracy Class:	Class1
Output Voltage:	120/230V
Operating Temperature:	-25 To 75
Dimensions:	18104.560
Product Name:	2 Pulse Output Single Phase Bi-directional Induction Watt Hour Meter
Module:	1 Module
Communication:	Modbus RTU/M-bus
Certificate:	CE
OEM:	Yes
Color:	White
Port:	Shanghai

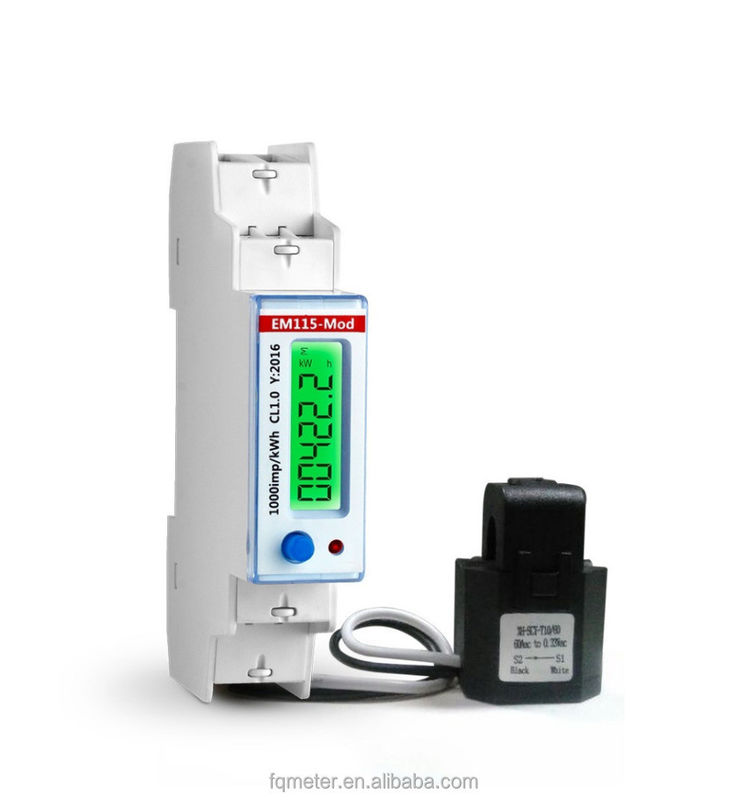

2 Phase Bi-Directional Induction Watt Hour Meter with Modbus RTU/M-bus

2 pulse output single phase bi-directional

induction watt hour meter

Main Functions and features

● Single phase metering
● CT 60A 330mv AC input
● Standard DIN rail Format (DIN43880)
● CI.1(kWh) according to EN62053-21 .
● CI.2(kvarh) according to EN62053-23
● Energy consumption LED
● LCD display , total kWh energy and kvarh readout: 5+1 DGT
● Green backlight display
● Instantaneous variables: V, A, W, var , PF, Hz
● 2 pulse output
● Smart communication port,
● RS485&M-bus can selected
● Self power supply
● Memory back-up (EEprom)
● 18mm wideth 1 modual

Voltage(v)	120/ 230
Operational voltage	(70%-130%)Un
CT	60A/0.33V
Power consumption of current circuits(VA)	< 0.01
Power consumption of voltage circuits(W)	< 1.3W
General data
Frequency (Hz)	50/60
Accuracy
Current	±0.5%
Voltage	±0.5%
Frequency	±0.1Hz
Active power	±1%
Reactive power	±2%
LED	Red led,1000imp/kWh
Output specification
Pulse duration	≥100ms < 120msec (ON), ≥120ms (OFF)
Insulation	4000 VRMS output to measuring inputs
Memory back-up	EEprom
Connections
Cable cross-section area	Screw-type Min 2.5mm2 Max 10mm2 Other terminals: 1.5mm2
DIN House(W×H×D)	17.5×90×67.5
