EM4374 power analyzer three phase rogowski coil meter

Name: EM4374 power analyzer three phase rogowski coil meter
Brand: shanghai fangqiu electric co.,ltd
SKU: EM4374
Price: 74.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: Fineco

Model Number: EM4374

Payment & Shipping Terms

Minimum Order Quantity: 5 units

Price: $73.00/units 75 units

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:

Product Name:	EM4374	OEM:	Avaliable
Communication:	RS485 Port MODBUS-RTU Protocol	Display:	LCD
Operating Temperature:	-25 To +75℃	Measuring Energy Range:	999999.99
Electric Parameters Measured:	RMS All Electric Parameters Include THD	Type:	Three Phase
Function:	Multifunction Electrical Monitoring	Installation:	DIN Rail Installation

Product Name:	EM4374
OEM:	Avaliable
Communication:	RS485 Port MODBUS-RTU Protocol
Display:	LCD
Operating Temperature:	-25 To +75℃
Measuring Energy Range:	999999.99
Electric Parameters Measured:	RMS All Electric Parameters Include THD
Type:	Three Phase
Function:	Multifunction Electrical Monitoring
Installation:	DIN Rail Installation

EM4374 power analyzer three phase rogowski coil meter

EM4374 power analyzer three phase

rogowski coil meter

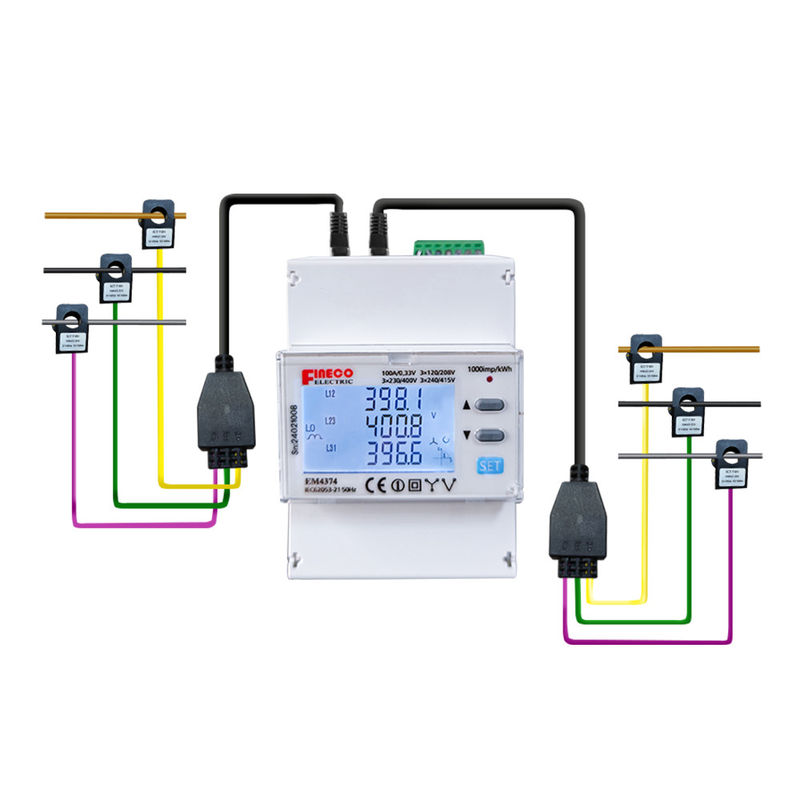

The EM4374 power analyzer Rogowski mete is compatible with Rogowski coils and voltage output type split-core current transformers.The sensors feature a plug-and-play RJ45 design, making installation and transportation convenient. It supports three-phase three-wire, three-phase four-wire, and single-phase modes, and can be configured for 6 single phases or 2 three phases.

It can measure current, voltage, power, power factor, maximum demand, power clamp meter with harmonics, as well as voltage and current symmetry for L1, L2, and L3. Advanced measurement technology ensures high accuracy and stability. Equipped with an RS485 communication interface, it uses the standard Modbus RTU protocol, suitable for solar inverters, AC charging stations, industrial plants, commercial buildings, data centers, etc., supporting power consumption monitor and management. The instrument can provide 5V2W DC power supply for communication gateways and acquisition field control equipment, simplifying field wiring.

Series Models:

Model	Transformers-coil	Current
EM4374	Open core	80A , 100A
EM4374	Rogowski coil	400A , 600A , 1000A , 3000A

EM4374 power analyzer three phase rogowski coil meter 0
