Product Details
Place of Origin: Shanghai, China
Brand Name: Fineco
Model Number: EM4373
Payment & Shipping Terms
Minimum Order Quantity: 5 units
Price: $34.00/units 5-199 units
Display Type: |
Digital Only |
Phase: |
Three Phase |
Measuring Energy Range: |
0---999999.99--9999999.9--99999999 |
Accuracy Class: |
CL1.0 |
Output Voltage: |
3*230/400V |
Operating Temperature: |
-25 To +75℃ |
Dimensions: |
72*100*68 |
Modbus Protocal: |
User Defined |
Product Name: |
Three Phase Electronic RS485 Energy Meter |
OEM: |
Yes |
Communication: |
Modbus Rtu |
Type: |
3 Phase Power Analyzer |
Application: |
EV Charging Energy Meter |
Connect Wire: |
CT Type For Bi-directional Smart Electric Energy Meter |
Display Type: |
Digital Only |
Phase: |
Three Phase |
Measuring Energy Range: |
0---999999.99--9999999.9--99999999 |
Accuracy Class: |
CL1.0 |
Output Voltage: |
3*230/400V |
Operating Temperature: |
-25 To +75℃ |
Dimensions: |
72*100*68 |
Modbus Protocal: |
User Defined |
Product Name: |
Three Phase Electronic RS485 Energy Meter |
OEM: |
Yes |
Communication: |
Modbus Rtu |
Type: |
3 Phase Power Analyzer |
Application: |
EV Charging Energy Meter |
Connect Wire: |
CT Type For Bi-directional Smart Electric Energy Meter |

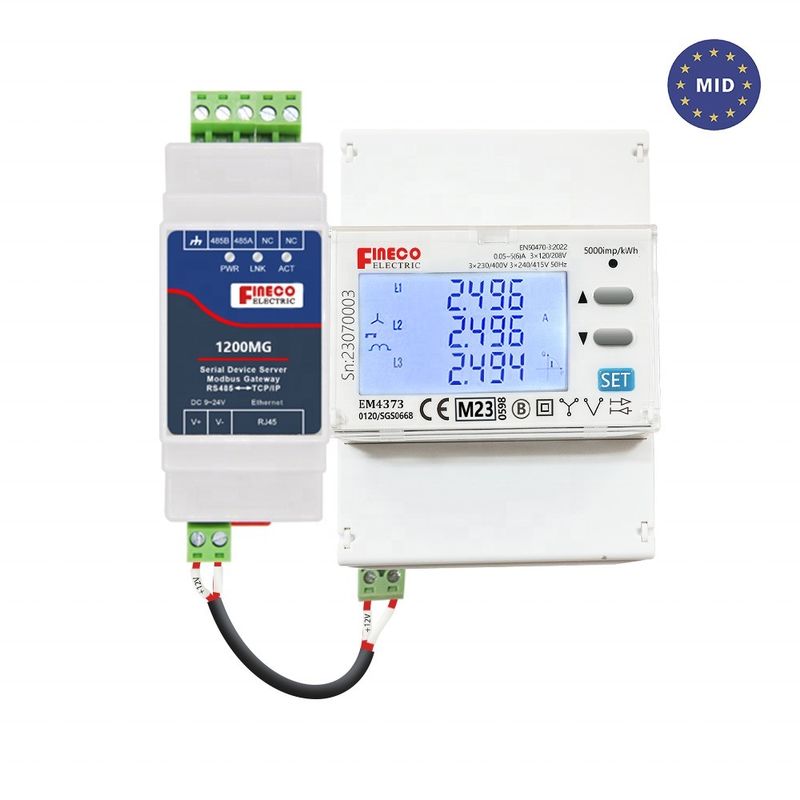

MID approved EM4373 CT 3*230/400V 0.05~5(6)A
three phase power quality analyzer meter
electricity meter with energy management system
The EM4373 power quality analyzer meter is a standard four-module 72mm width, which can be used for single-phase two-wire/three-phase three-wire/three-phase four-wire power grids.The instrument provides real-time monitoring of A/B/C three phase Voltage(L-N,L-L), Amp, kW, kVA, kvar, PF, include maximum, minimum, average values. Phase angle, voltage phase sequence indications and Voltage asymmetry & current asymmetry. PT ratio& CT ratio selectable, THD up to 41th order for voltage& current and Maximum demand on Amp & kW& kVA.
The instrument is connected to an external miniature contactor, which can realize remote on/off control of household equipment; The meter can also be used in a dual-power system to measure grid and generator charges; The instrument's RS485 communication port allows remote system connection to provide all parameters in real time. User can define modbus protocol .SDM630mct SDM630mct three phase SDM630 modbus
Series Models:
Type | Nominal voltages | Function |
EM4373 |
3×120/208V~ 3×230/400V
| ● Compatible with LV,MV,HV applications ● System wiring method Y/Δ, Voltage L-L from 208V up to 415V ● More than 300 electrical parameters measured and displayed ● Harmonic analysis of voltage and current up to 41st order ● Phase sequence indication ● Voltage Asymmetry (Phase-Phase, Phase-Neural), Current Asymmetry ● Max & Min & Average &demand measure ● Load survey/profile, interval programmable ● Built-in RS485 communication port,modbus protocol ● Available the remote firmware upgrade of the instrument |
