Multifunction Electrical Monitoring LCD Power Analyzer with Rogowski Coil Meter EM4374

Name: Multifunction Electrical Monitoring LCD Power Analyzer with Rogowski Coil Meter EM4374
Brand: shanghai fangqiu electric co.,ltd
SKU: EM4374
Price: 40.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: Fineco

Model Number: EM4374

Payment & Shipping Terms

Minimum Order Quantity: 5 units

Price: $75.00/units 5-199 units

Get Best Price

Product Details

Product Description

Highlight:

Display Type:	Digital Only	Phase:	Three Phase
Measuring Energy Range:	0~999999.99~9999999 9	Accuracy Class:	1.0 Or B
Output Voltage:	100A/0,33V 3120/208 3230/400V 3*240/415V	Operating Temperature:	-25℃~55℃
Dimensions:	100mm X 72mm X 68mm	Product Name:	EM4374
Communication:	RS485 Port MODBUS-RTU Protocol	Display:	LCD
Installation:	DIN Rail Installation	Function:	Multifunction Electrical Monitoring
Electric Parameters Measured:	RMS All Electric Parameters Include THD	OEM:	Avaliable
Type:	Three Phase

Display Type:	Digital Only
Phase:	Three Phase
Measuring Energy Range:	0~999999.99~9999999 9
Accuracy Class:	1.0 Or B
Output Voltage:	100A/0,33V 3120/208 3230/400V 3*240/415V
Operating Temperature:	-25℃~55℃
Dimensions:	100mm X 72mm X 68mm
Product Name:	EM4374
Communication:	RS485 Port MODBUS-RTU Protocol
Display:	LCD
Installation:	DIN Rail Installation
Function:	Multifunction Electrical Monitoring
Electric Parameters Measured:	RMS All Electric Parameters Include THD
OEM:	Avaliable
Type:	Three Phase

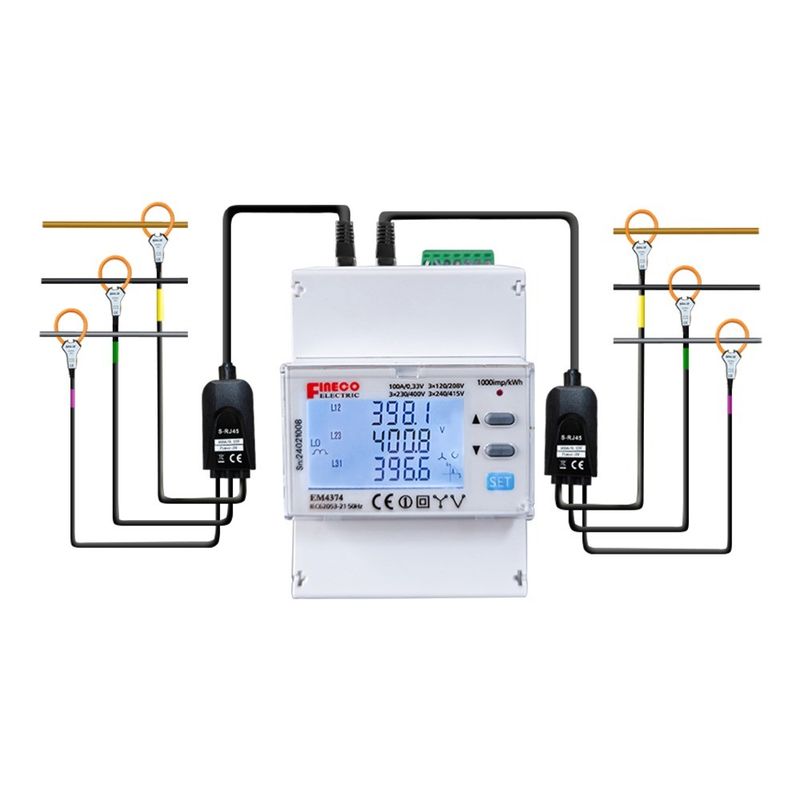

Multifunction Electrical Monitoring LCD Power Analyzer with Rogowski Coil Meter EM4374

EM4374 power analyzer three phase

rogowski coil meter

The EM4374 power analyzer Rogowski mete is compatible with Rogowski coils and voltage output type split-core current transformers.The sensors feature a plug-and-play RJ45 design, making installation and transportation convenient. It supports three-phase three-wire, three-phase four-wire, and single-phase modes, and can be configured for 6 single phases or 2 three phases.

It can measure current, voltage, power, power factor, maximum demand, power clamp meter with harmonics, as well as voltage and current symmetry for L1, L2, and L3. Advanced measurement technology ensures high accuracy and stability. Equipped with an RS485 communication interface, it uses the standard Modbus RTU protocol, suitable for solar inverters, AC charging stations, industrial plants, commercial buildings, data centers, etc., supporting power consumption monitor and management. The instrument can provide 5V2W DC power supply for communication gateways and acquisition field control equipment, simplifying field wiring.
Due to the need to confirm whether your require a Rogowski coil or a current transformer, and to determine the size and current specifications, please contact the sales personnel for confirmation before placing your order.

Type	Transformers-coil	Current
EM4374	Open core	80A , 100A
EM4374		Rogowski coil	400A , 600A , 1000A , 3000A
