Product Details
Place of Origin: Shanghai, China
Brand Name: Fineco
Model Number: EM115-Mod
Payment & Shipping Terms
Minimum Order Quantity: 200 units
Price: $19.00/units 200-999 units
Packaging Details: Standard export packing for EM115-Mod 120/230V 100A prepaid round smart meters for electricity
Supply Ability: 5000 Unit/Units per Month EM115-Mod 120/230V 100A prepaid round smart meters for electri
Display Type: |
Digital Only |
Phase: |
Single Phase |
Measuring Energy Range: |
99999.9 |
Accuracy Class: |
Class1 |
Output Voltage: |
120/230V |
Operating Temperature: |
-25 To 75 |
Dimensions: |
18*104.5*60 |
Product Name: |

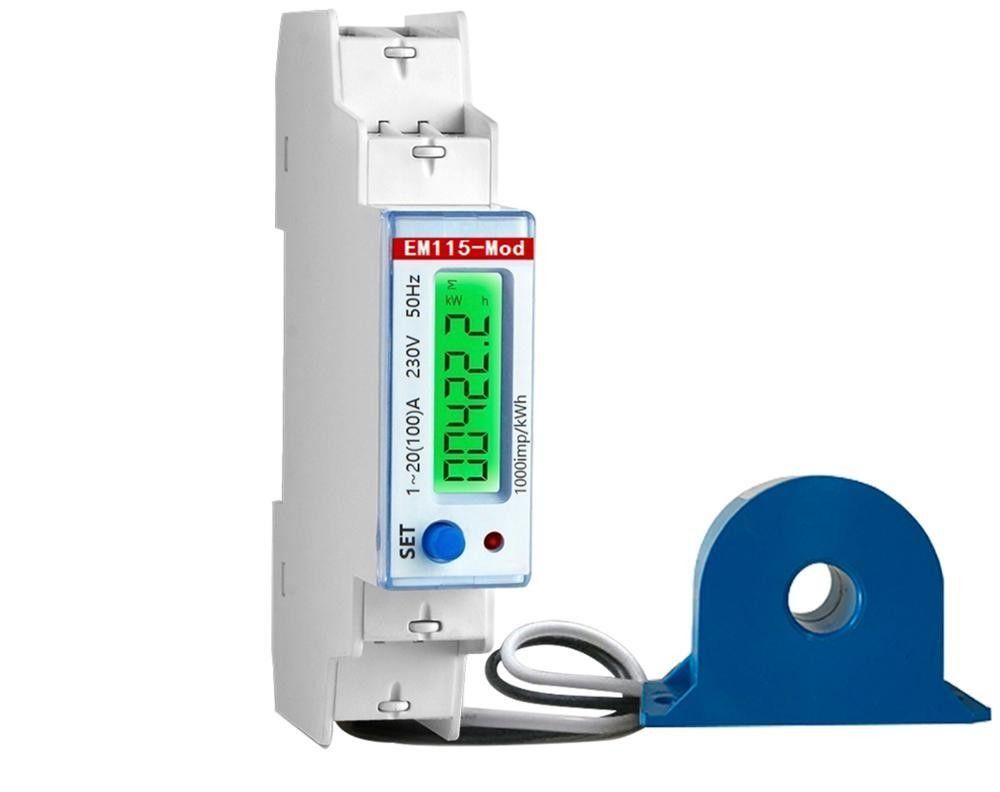

EM115-Mod 120/230V 100A Prepaid Round Smart Meters For Electricity |
Module: |
1 Module |
Communication: |
Modbus RTU/M-bus |
Certificate: |
MID |
OEM: |
Yes |
Color: |
White |
Port: |
Shanghai |
Display Type: |
Digital Only |
Phase: |
Single Phase |
Measuring Energy Range: |
99999.9 |
Accuracy Class: |
Class1 |
Output Voltage: |
120/230V |
Operating Temperature: |
-25 To 75 |
Dimensions: |
18*104.5*60 |
Product Name: |
EM115-Mod 120/230V 100A Prepaid Round Smart Meters For Electricity |
Module: |
1 Module |
Communication: |
Modbus RTU/M-bus |
Certificate: |
MID |
OEM: |
Yes |
Color: |
White |
Port: |
Shanghai |
Voltage(v) | 120/ 230 | |
Operational voltage | (70%-130%)Un | |
CT | 60A/0.33V | |
Power consumption of current circuits(VA) | < 0.01 | |
Power consumption of voltage circuits(W) | < 1.3W | |
General data | ||
Frequency (Hz) | 50/60 | |
Accuracy | ||
Current | ±0.5% | |
Voltage | ±0.5% | |
Frequency | ±0.1Hz | |
Active power | ±1% | |
Reactive power | ±2% | |
LED | Red led,1000imp/kWh | |
Output specification | ||
Pulse duration | ≥100ms < 120msec (ON), ≥120ms (OFF) | |
Insulation | 4000 VRMS output to measuring inputs | |
Memory back-up | EEprom | |
Connections | ||
Cable cross-section area | Screw-type Min 2.5mm2 Max 10mm2 Other terminals: 1.5mm2 | |
DIN House(W×H×D) | 17.5×90×67.5 | |
